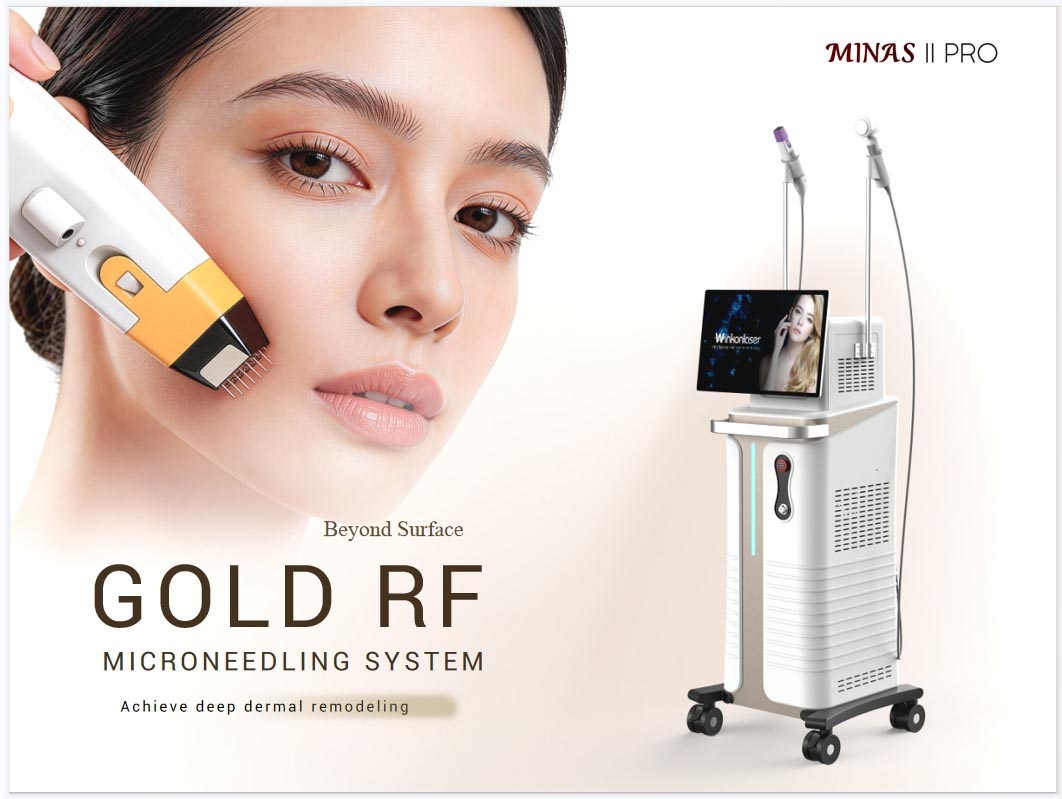

TM80 Smart Dual-Frequency Vacuum Gold RF Microneedling Machine for Dermal Remodeling
TM80 Smart Dual-Frequency Vacuum Gold RF Microneedling Machine for Dermal Remodeling

TM80 Smart Dual-Frequency Vacuum Gold RF Microneedling Machine for Dermal Remodeling

Product Description

The TM80 integrates Smart Dual-Frequency (2.2MHz & 700KHz) and Vacuum Sensing technology to deliver precision treatment across all skin layers. Engineered for maximum clinical versatility, it features a 0.2mm–7.0mm adjustable depth and 13 RFID-secured cartridges, including the unique 5-layer MN-Burst mode for simultaneous multi-level repair. From erasing deep acne scars and stretch marks to non-surgical face lifting and pore refinement, the TM80 ensures superior results with minimal discomfort, making it a high-margin powerhouse for modern aesthetic clinics.

Leave Message Inquiry Online

Specifications

General Specifications

Power Supply

AC 100~240V, 50/60Hz (Wide Voltage)

Input Power

300VA

Needle Pitch

1.5 – 2.5mm

Needle Diameter

0.2mm

Penetration Depth

0.2 – 7.0mm (Adjustable)

Needle Type

Insulated / Non-Insulated

Energy Delivery Mode

Single-Depth / Multi-Depth Delivery

Cartridge Lifespan

1,200 Shots

Cartridge Detection

Auto-Recognition

Radio Frequency (RF)

Operating Frequency

700KHz ±20% / 2.2MHz ±20%

No-Load Voltage

415Vpp / 110Vrms ±10%

Max RF Output Power

45W

Control Mode

Constant Power

Vacuum Suction

Smart Detection

Detects skin contact via real-time air pressure changes

Max Vacuum Pressure

29mmHg

Max Airflow Rate

3.6 L/min

Noise Level

< 60dB

Needle Insertion Mechanism

Max Stroke Length

7.0mm

Max Insertion Force

1.5kg

Precision Engineering for Clinical Excellence

  • Intelligence: The TM80 utilizes an automated frequency selector. 2.2 MHz navigates the epidermis for surface radiance, while 700 kHz penetrates the deep structural layers to catalyze long-term collagen growth.



  • Vacuum Logic: Our Smart Sensing System triggers energy discharge only upon an airtight seal. This eliminates “dry firing,” secures consistent depth, and minimizes discomfort.





Precision Engineering for Clinical Excellence

13 Tailored Clinical Solutions with RFID Integrity

  • The MN-Burst Advantage (Yellow): A proprietary mode that delivers energy across 5 dermal tiers (0.2mm – 4.5mm) in a single pulse, constructing a robust structural scaffold.



  • Deep Tissue Mastery (Green): Reaches an industry-leading 7.0mm depth—ideal for severe atrophic scars and body skin tightening.



  • Surface Refinement (Pink & Purple): Non-insulated and planar RF options for superficial resurfacing without traditional downtime.

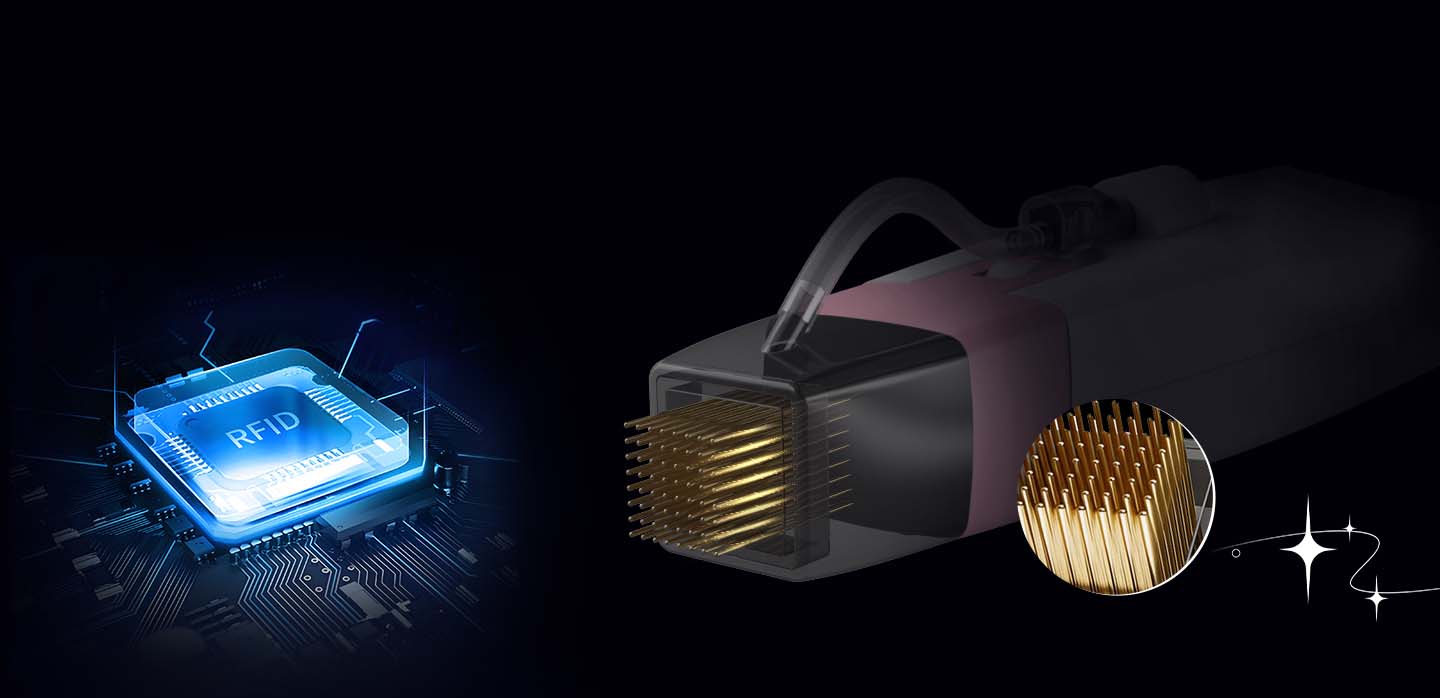

  • Safety: Every tip is forged from 316L medical stainless steel, nano-gold plated, and EO-sterilized for absolute hygiene.





13 Tailored Clinical Solutions with RFID Integrity

High-Performance Architecture

  • Visual Control: A 15.6-inch medical-grade HD touchscreen provides an intuitive interface for real-time monitoring.



  • Post-Care Synergy: The dedicated Ice Hammer handle works in tandem with the RF handle to instantly soothe treated areas and accelerate the healing cycle.



  • Business Ready: Built-in CRS Rental & Consumables Management allows for seamless tracking and profitability monitoring via RFID technology.





High-Performance Architecture

Clinical Application Guide

  • Facial Architecture: Targeting the Periorbital, Perioral, and Jawline regions for non-surgical lifting.



  • Textural Revision: Effective for atrophic acne scars, enlarged pores, and uneven skin topography.



  • Body Contouring: Utilizing the 7.0mm depth for striae distensae (stretch marks) and abdominal skin tightening.



  • Recovery Protocol: Post-treatment recovery is managed via the Ice Hammer handle, reducing vascular congestion instantly.





Operational Excellence

  • CRS Rental System: Built-in cloud-based consumable management allows clinics to track shot counts and manage lease-based business models effectively.



  • Universal Compatibility: Wide voltage support (AC 100~240V) for seamless integration into global medical aesthetic markets.



Operational Excellence
